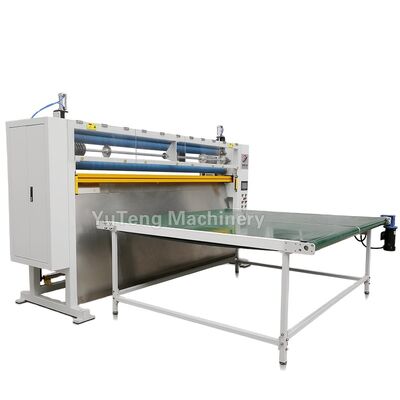

Computerrized Panel Cutter Machine
Ürün ayrıntıları:
| Menşe yeri: | Guangdong, Çin |
| Marka adı: | YuTeng |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | $9,200-10,000 |
|
Detay Bilgi |
|||
| Gerilim: | 380V/50Hz, 220V/60Hz | Güç: | 1.8Kw, 2.6KW |
|---|---|---|---|
| Boyut: | 3700*2200*2200mm, 3700mm*1100mm*2200mm, 3700mm*1100mm*1850mm | Ağırlık: | 780Kg, 1500Kg |
| Hava basıncı: | 0.4-0.8mpa | Kalınlık: | ≤80mm, ≤50mm |
| hız: | 10m/dk | Maksimum X Boyutu: | 2300mm, 300mm |
| Kesme malzemeleri: | Kumaş, Kumaş, Konfeksiyon, Yün, Tekstil, İpek | Çekirdek bileşenler: | Motor |
| Otomatik derecelendirme: | Otomatik | Üretim kapasitesi: | %100 |
| Kenar düzeltme: | 2300mm, 300mm | Maksimum Dilme Makinası: | 2300mm |
| Çalışma Basıncı: | 0.4-0.8mpa | ||
| Vurgulamak: | computerized panel cutter machine,computerized cutting machine with warranty,precision panel cutting machine |
||
Ürün Açıklaması

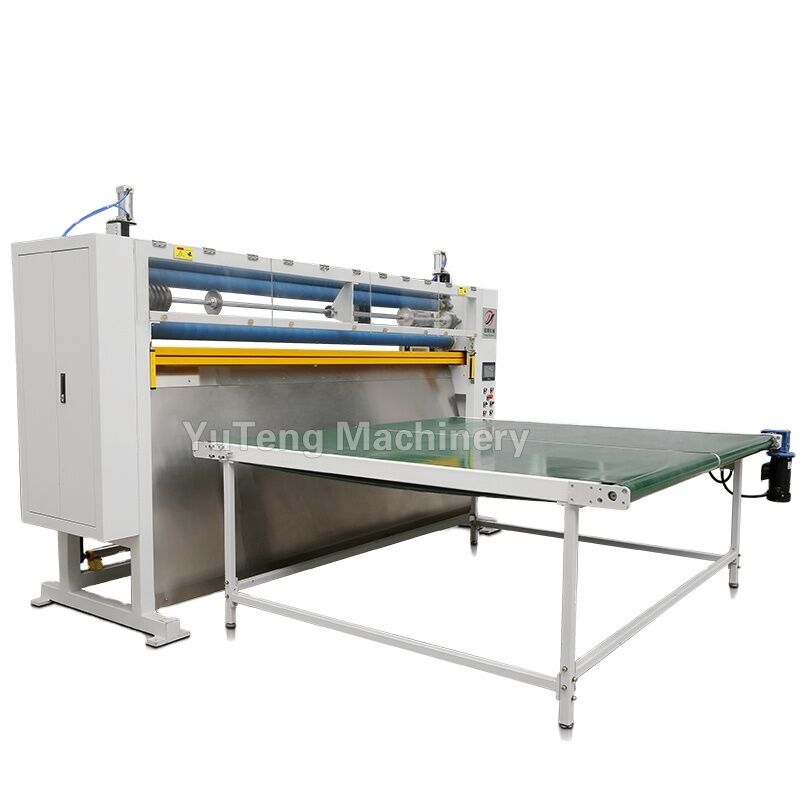

Computerized Panel Cutter Machine
Product Parameters
| Feature | YTCM-F SERIES | YTCM-D SERIES |
|---|---|---|
| Edge Trim/Slitters Max X Dimension | 2300mm | 2300mm |
| Edge Trim Max X Dimension | 300mm | 300mm |
| Power Supply | 380V/50Hz 220V/60Hz |
380V/50Hz 220V/60Hz |
| Machine Dimension (L*W*H) | 3700mm*1100mm*2200mm | 3700mm*1100mm*1850mm |
| Weight | 1500Kg | 1500Kg |
| Operating Air Pressure | 0.4-0.8Mpa | 0.4-0.8Mpa |
| Thickness | ≤80mm | ≤50mm |
| Speed | 10m/min | 10m/min |
| Power | 2.6KW | 2.6KW |
Company Profile
DongGuan YuTeng Machinery Technology Co., Ltd. is a modern high-tech enterprise specializing in:
- High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machines
- Double Rows Computerized Quilting and Embroidery Machines
- Computerized Chain Stitch Multi-Needle Quilting Machines
- Computerized Panel Cutter Machines
- Rolling machines
Our Advantages
- 7-inch touch screen with large display for ease of operation (English/Chinese versions available)
- Hidden slitting blades for convenience and safety
- Electric controls for length and width of cross cut for user-friendly operation
- Feed-in top with article points for pressure roller ensures even pressure and level feeding
- Y-dimension encoder for precise length counting
- Specialized edge trimming capability for thinner materials
Certifications
